Passenger Elevators

They are designed to suit every construction requirement, with trouble free performance and low maintenance cost.

Single speed lifts operate at a maximum speed of 40 meters(130 ft) per minute powered by specially designed lift duty Single Speed motors.  High Speed lifts are manufactured with self leveling devices. Within a given speed range, floor leveling is adequate for normal passenger capacity. as per I.S.

The Lift Control System can be of Car Switch or Automatic Type. The Car switch type is for operation by an attendant, whereas the Automatic type comprises of feather touch buttons at each landing which call the lift car and a series of buttons in the car which correspond to the floors to be served and operated by the passengers using the lift.

Each lift is fully equipped with the latest safety devices as required by the State Lift Acts prevailing in Gujarat, Maharashtra, West Bengal  Karnataka and New Delhi.



Lift Cabin

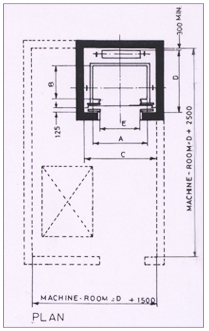

Civil Dimensions
SR.No. LOAD CAR INSIDE LIFT WELL ENTRANCE REMARKS
  PERSONS KG A B C D E
1 4 373 1100 700 1900 1300 800
2 5 340 1100 800 1900 1200 800
3 6 408 1100 1000 1900 1600 800
4 8 544 1300 1100 1900 1900 800
5 10 680 1350 1300 1900 2100 800
6 13 884 2000 1100 2500 1900 900
7 16 1088 2000 1300 2500 2100 1000
8 20 1360 2000 1550 2500 2400 1000
NOTES : -

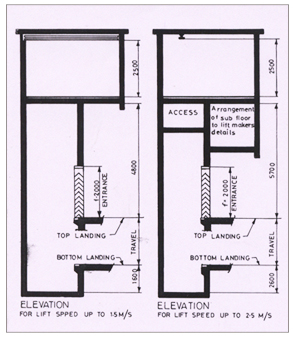

The total headroom has been calculated on the basis of car height of 2.2 m.
In case of manually operated doors, clear entrance will be reduced by the amount of projection of handle on the landing door  projects
Four and Six passenger lifts are generally limited to a speed of 1.0 m/s
